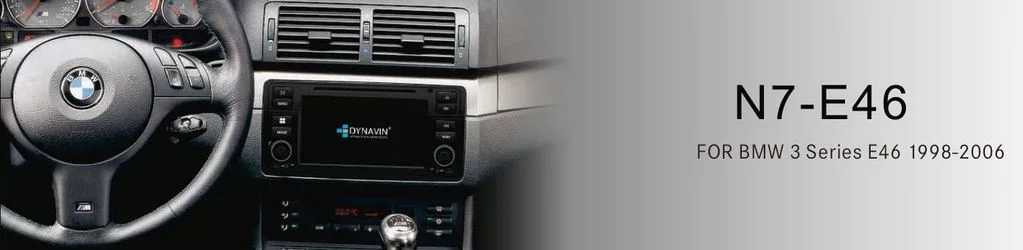

Dynavin N7-E46 Radio Navigation System, for BMW 3 series 1998-2006
Dynavin N7-E46 Radio Navigation System, for BMW 3 series 1998-2006
For BMW 3 Series 1998-2006 (E46)
Plug and Play: replaces "BMW Business CD/Professional" single-din standard radio or double-din OEM navigation unit
Premium 7"/16:9 LCD capacitive touchscreen display (1024 x 600 resolution)
Maintains functionality of steering wheel controls (iBUS solution integration built-in)
FM RDS TMC tuner with DSP noise masking and 30 preset stations
Integrated Sound DSP processor with EQ, time correction and 4V pre-out
DSP/Harman Kardon audio system compatible
AV input/output, AUX in/out -- AUX-in flush mount plug sold separately
CD+DVD disc player
SiriusXM compatible with SXV300 Tuner (plug-and-play) sold separately
Parrot Bluetooth (external microphone included) for audio streaming and hands-free voice calling via any smartphone (Android, Apple, etc.)
Multimedia player by USB connectivity: includes 3 ft. USB cable to extend to glove box or get the 6ft flush mount USB extension cable
Multimedia micro SD card reader
Reverse/back-up camera ready; compatible with most universal back-up cameras (see backup camera sold separately)
SMARTPHONE COMPATIBLE: ANDROID, APPLE iOS, AND MORE
Android Link screen-mirroring for Android devices through USB. Control your Android device on the Dynavin's touchscreen
Apple CarPlay compatible with the Dynavin iLink for Apple CarPlay add-on
iPhone/iPod/iPad - Ready (Connect with a "Lightning Cable" to play music and charge your Apple device)
DynOS operating system platform developed by Dynavin
Includes navigation software with 3D landview and premium POI: Includes a licensed copy of iGo Primo Navigation Program with North American maps (A $99 VALUE). Premium POIs, 3D buildings, additional maps and updates are available from www.naviextras.com.
*Required for E46s WITHOUT OEM Navigation (Business CD/single-din): Which AC control relocation bracket do I need for my E46 without OEM navigation? Simply select the appropriate bracket (Single or Individual Row) in the drop-down menu "Select Current Audio System" above.
OR
*Required for E46s WITH OEM Navigation only: Extension "Fakra" cable for installation. Simply select "E46 w/ OEM navigation (includes extension cable)" above under "Current Audio System" to purchase the Dynavin unit with the necessary cable.
Features:
Smartphone Ready
The Dynavin N7 can connect directly to your iPod, iPhone, iPad for music via USB and it will display artist, album, song, and album art on the Dynavin's touchscreen. A wired USB connection provides direct digital signal transfer from your device for clean, clear sound all while keeping your device charged. Simple, intuitive search tools help you find your content faster. Android smartphones can connect via Bluetooth and display artist, album, and song but not album art.

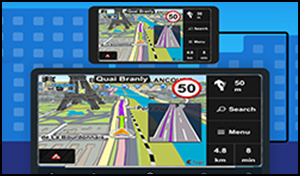

Android Link
Use Android Link to see and control your compatible Android device from your Dynavin's touchscreen. Combine Android Link with the Android Auto phone app for a simplified interface, large buttons, and voice commands designed to make it easier to use apps from your phone while on the road.
SiriusXM Satellite Radio Ready
Add the SiriusXM Connect Vehicle tuner (sold separately) to listen to your SiriusXM subscription anytime, anywhere.
Capacitive Anti-glare Touchscreen
View your Media and Navigation on a clear, high resolution display. A capacitive anti-glare touchscreen gives you precise fingertip control and superior visibility in all lighting conditions.

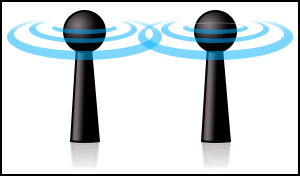

Dual Radio Tuner
The Dynavin uses an FM phase diversity circuit, processing the signals of the dual antennas built into the vehicle. DSP algorithms create a noise and distortion free FM signal by merging both radio signals into a single new audio stream. Allowing for optimal radio reception even under the most challenging conditions.
Parrot Bluetooth
Bluetooth Plus gives you hands-free phone operation plus many other convenient functions like easy alphabetical phonebook search, hold and switch incoming calls, battery and mobile reception level indicators, plus advanced audio streaming while displaying song, artist and tag information. Compatible with any smartphone.
iGo Primo Navigation- included (North America, Europe, or Australia)
Dynavin N7 features a built-in navigation system with simple destination input, turn-by-turn voice prompts, and selectable route guidance - everything you need to reach your destination quickly and efficiently. Pre-loaded with rich points of interest, its database includes national parks, restaurants, petrol stations, and much more. Furthermore, Dynavin offers 30 days FREE updating on the maps after the first use. Visit www.naviextras.com to update.
4V Preout
High powered 4 Volt Preamp Outputs ensures ultra clean signal transmission from the Dynavin to aftermarket amplifiers. When properly gain matched these high voltage RCAs virtually eliminate noise and distortion, even at high volume levels.

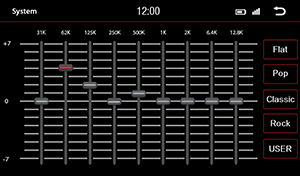

DSP Sound Integration
Dynavin N7 head units use high-resolution Burr Brown 24-Bit Digital to Analogue conversion allowing for clean, accurate, stunning sound reproduction.
IBUS integration
1. Steering wheel button remote control integration

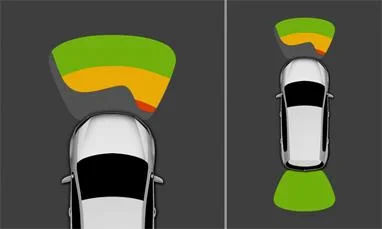

2. Parking distance sensor (PDC) integration for vehicles so equipped
3. Support OEM DSP sound system
4. Onboard computer information integration
Specifications:
Tuner
Memory Presets: Preset Stations (FM:15 / MW: 15)Memory: Auto Memory
RDS
RDS Functions: AF, TA, TP, PTY, NEWS, RADIO TEXT
Bluetooth
Compatible with Android smartphones and Apple iPhone, iPod, and iPadBuilt-In Parrot Bluetooth ModuleBluetooth audio streaming with tag info displayHands-Free CallingPhone Book TransferPhone Book Search: Alphabet SearchFavorite contactsWired Microphone IncludedRedial FunctionCall History DisplayAdjusting the volume when receiving a call
About iPod Connectivity
USB Connection (USB Cable Included)Compatibility for iPod?: iPod touch 4G/3G/2G/1G, iPod classic, iPod with Video, iPod nano 6G/5G/4G/3G/2G/1G, iPhone 4, iPhone 3GS, iPhone 3G, iPhoneM.I.X. (Shuffle) Capability: Song, Albums, AllMusic Control: Song Up/Down, Fast Forward/Backward, RepeatAvailable Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, AudiobookAlphabet Search FunctionInformation Display: Album Art, Song (Title, Album)Direct iPod/iPhone Control Function
Disc Player
DVD+CD PlayerDisc Playback Type: DVD Video, DVD Audio (2ch mix down), CD, CD-R, CD-RW, DVDR/RW, DVD-VRCompressed Media Playback: MPEG/ AVI /RM/ FLV/ ASF/ WMV/ MP4/ MKV/ OGM/ DivX/ MP3/ WMA/ AAC Playback24bit-DACSensor: Music Sensor Scan, RepeatPlayback Control: Play/Pause, Fast Forward/BackwardDVD Direct Menu ControlM.I.X. Mode: One (Folder) / All (Random Play) / Random (CD Only)
USB / SD Media Connection
USB Connection (USB Cable Included)Music Playback: MP3/AAC/WMA PlaybackUSB Class: Mass Storage, Play from deviceAvailable Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, AudiobookAlphabet Search FunctionInformation Display: Artist, Song Title, Album Title Cover Art Displayed on Apple Devices only
Sound Tuning
Subwoofer Level AdjustmentDyna-Bass level adjustmentBass Level AdjustmentBass Center Frequency AdjustmentBass Bandwidth AdjustmentTreble Level AdjustmentTreble Center Frequency AdjustmentSource Tone MemoryTime Correction AdjustmentEqualizer: 9-Band Parametric Equalizer Feature
General
Power Output: 4 x 50 W High Power AmplifierHigh Grade Audiophile DesignSD Card: Video PlaybackPreOut: 3 sets PreOuts (4V) and 1 AV OutputAUX-In: 1 AV InputSteering Wheel Control interface includedAuto DimmerPower Antenna OutputAmplifier Remote Turn-On OutputAudio InterruptCamera Guide Line AdjustmentDual Zone Control
ADDITIONAL ACCESSORIES MAY BE REQUIRED FOR PROPER INSTALLATION:
*Required for E46s with OEM Navigation only: Extension "Fakra" Cable Kit for installation. Simply select "E46 w/ OEM navigation (includes extension cable)" above under "Current Audio System" to purchase the Dynavin unit with the necessary cable.
*Required accessories for standard E46s WITHOUT OEM Navigation only: E46s without OEM Navigation only require relocation of the HVAC controls to the area above the ashtray using the "HVAC Relocation Bracket." There are 2 different kinds: single row and individual row. Please look at the descriptions of each and purchase the one that matches your car by selecting it under "Current Audio System" above. Email us a picture of your console if you need help.
Click here for the Dynavin BMW E46 Install Guide (See HELP > INSTALL GUIDES for more)
Make installation even easier with the Dash Trim Removal Kit!
